产品特性：

  • 更稳、更准
  • 超长工作时数90小时
  • 图形化介面
  • IP65防水外壳
  • CE认证防电磁干扰
  • 自动关机、省电装置
  • USB2.0传输介面
  • 2000笔记忆体
  • 轴承测量功能
​

Model No. VM-33 VM-36 VM-39
Hold O O O
Average O O O
PK.Hold O O O
AC Output O O O
Backlight O O O
HP Filter O O O
Precise X O O
Memory X X O
USB Cable X X O


  Specifications


  • Transducer：
    • Individually calibrated piezoelectric accelerometers(100mV/g +/-5%)
  • Meas.Range：
    • Acceleration：0.001-20.00g(RMS)
    • Velocity：0.01-200.0mm/s(0-P)
    • Displacement：0.1-2000um(P-P)
  • Frequency Range：
    • Acceleration：
      • 10Hz to ~ (normal mode)
      • 500Hz to ~(HP mode for bearing condition check)
    • Velocity：10Hz to 1kHz (meet ISO2954,ISO10816)
    • Displacement：10Hz to 1kHz
  • Display：
    • LCD indicating measurement value and unit ,low battery level,and sensor cable, update once per second
  • Hold/Avg/PK. Hold：
    • When PK.Holde on, the meter always keeps the maximal value until it is released, Avg/Hold can help user to read the vibration value more easily
  • Accuracy：
    • +/-5% of value +/-2 digits
  • Operating Conditions：
    •  Temperature：0-50∘C.
    • Humidity：Below 90% RH.
  • Dimensions：
    • 170(H) * 80 (W) * 320(D) mm.
  • Weight：
    • 280g(without sensor and cable)
  • AC Output：
    • 2V Peak FS for headphones or recordings
  • Power：
    • Standard 9V battery, giving up to 90 hours continuous use.
  • Accessories included：
    • Accelerometer and cable, insruction manual, rare earth magnet, 9V battery, 120mm probe, carry case.
  • Optional Accessories：
    • Headphones(as electronic stethoscope)

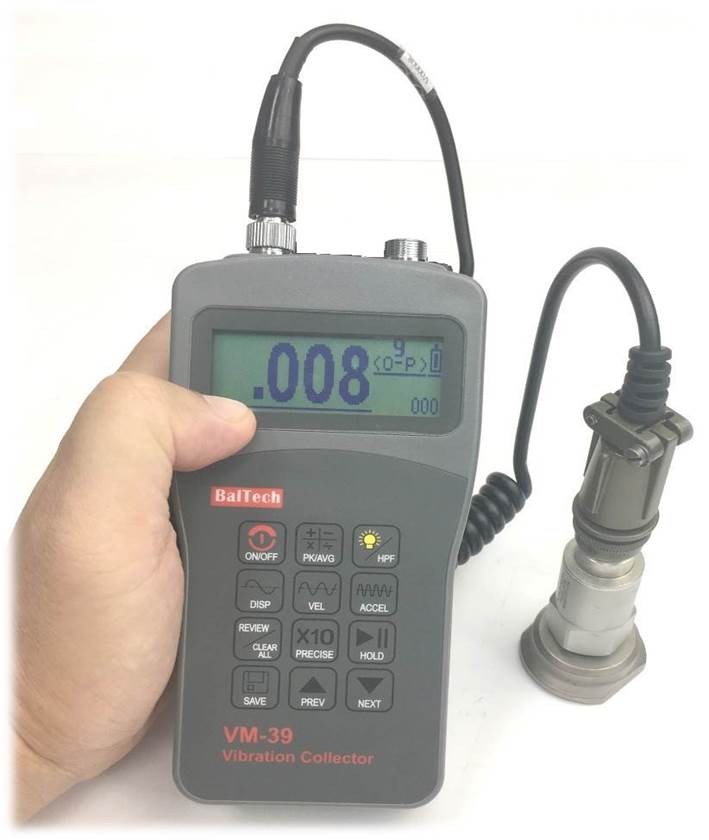

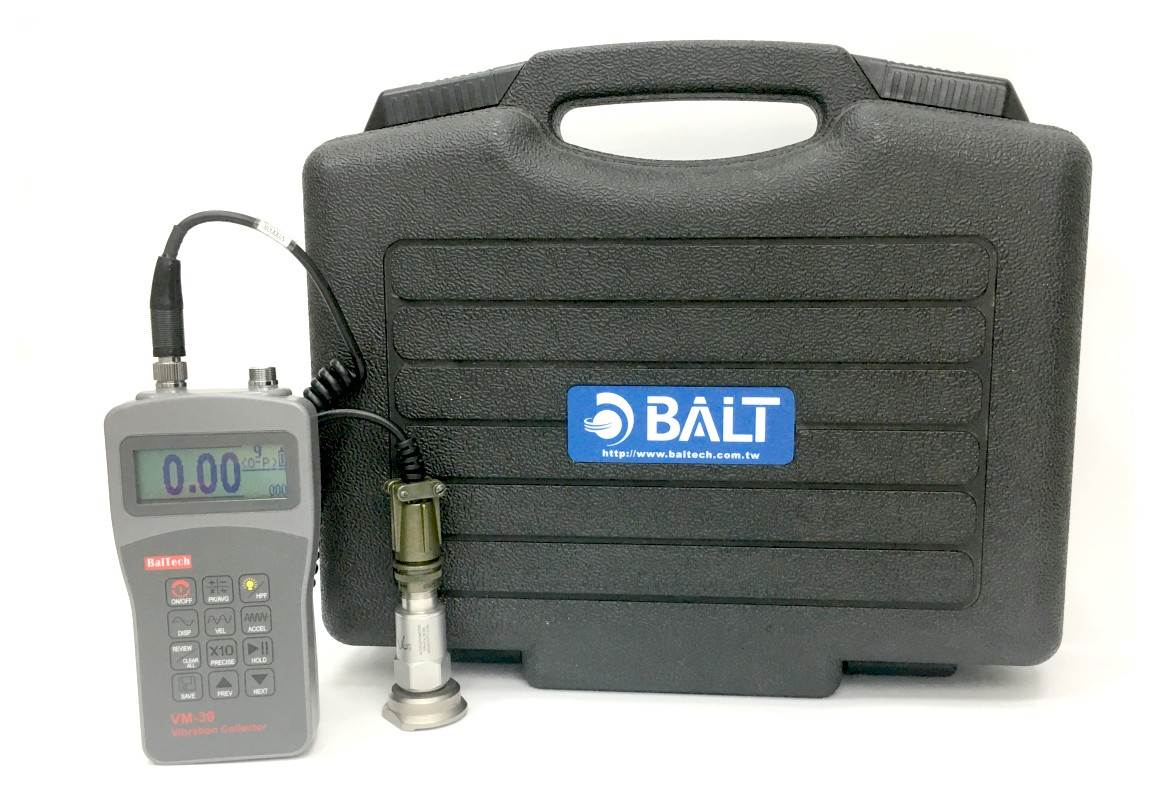

VM369 Series Vibration Meter and Carry Case
